      首頁：蜂鳴器/警示燈 > Patlite

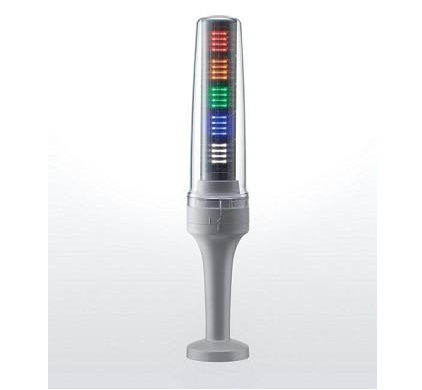

Patlite LS7
產品編號：LS7
商品廠牌：Patlite
商品型號：Patlite LS7
商品規格：LED積層燈
參考售價：0
商品單位：只



官網連結

影音連結

Product Features

・A smooth-surfaced body which does not expose any metal
　The lens cover is made of shock-resistant polycarbonate.
・A buzzer sound heard through various environments
・High-contrast Visibility
・Remarkable Display in ANY Environment
・M12 Connector Wiring & Stackable Construction
・Easy Attachment & no need for a Relay BOX
・All Plastic Bracket

Model Specifications

SIZE - 70mm Diameter
INPUT VOLTAGE OPTIONS - 24V DC
MOUNTING OPTIONS Platform Bracket
- SZ-100 (Off-white)
- SZ-100-D (Dark Gray)
- SZ-100-S (Silver)
Wall Mounting Bracket
- SZ-110 (Off-white)
- SZ-110-D (Dark Gray)
- SZ-110-S (Silver)
BODY STYLE H-type
- Pre-assembled, pre-wired
C-type
- M12 Connector
BODY COLOR - Body: Off-white
- Body: Dark Gray
- Body: Silver
TIERS - 3 Tires
- 5 Tires
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
ALARMS (FB STYLE ONLY) - Buzzer 1: Lead Wire Type (Intermittent beep1)
M12 Conector Type (Continuous Beep) 82dB (at 1m)
- Buzzer 2: Lead Wire Type (Intermittent beep2)
M12 Conector Type (None) 85dB (at 1m)
RATINGS - CE Marking (24V only)
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION - IP-66 (Illumination Type)
- IP-65 (Buzzer Type)
